CCS Programmers & Debuggers

Hardware development solutions designed to
fit your needs and budget

CCS Programmers & Debuggers

ICD-U80 Debugger/Programmer

ICD-U80 Debugger/Programmer

  • Accelerated programming speed using a 140MHz internal processor
  • Integrated Vdd generator to supply 1.5-5.5V and 400mA to target
  • Software controlled power to target - no jumpers to change
  • Programming and debugging support for Microchip PIC® MCU, dsPIC® DSCs, & flash devices
  • Programming support for Microchip PIC32 and 8-bit AVR® microcontrollers (HVSP interface is not supported)
  • Note: This product replaces the ICD-U64.
$119
More Info
View Backorder Details. The estimated return to stock date is December 27, 2024.

LOAD-n-GO Handheld Programmer

LOAD-n-GO Handheld Programmer

  • Flexible & self-contained programmer
  • ICD & ICSP™ programmer/debugger
  • Option to power through: USB, battery, or 9VAC
  • 2MB internal SD flash card
  • Ability to load up to 4 different programs
  • Option to power target board
  • Automatic shutoff to conserve battery life
  • Programming and debugging support for Microchip PIC® MCU, dsPIC® DSCs, & flash devices
  • Programming support for Microchip PIC32 and 8-bit AVR® microcontrollers (HVSP interface is not supported)
$225
More Info
View Backorder Details. The estimated return to stock date is March 1, 2025.

Mach X Programmer

Mach X Programmer

  • Versatile and high-speed
  • ZIF socket or ICSP™ programmer/debugger
  • Program & read HEX & COF files
  • Automatic serial numbering options
  • Efficient batch programming options
  • Internal oscillator to calculate and program calibration constants
  • Programming and debugging support for Microchip PIC® MCU, dsPIC® DSCs, & flash devices
  • Programming support for Microchip PIC32
$225
More Info
View Backorder Details. The estimated return to stock date is March 31, 2025.

Prime8 Production Programmer

Prime8 Production Programmer

  • 8-Gang production programmer
  • Internal 8MB flash for saving HEX files
  • Rear USB drive plug for more expandable storage
  • Store up to 4 deployable programs
  • Use as standalone programmer
  • Optional control with included CCSLOAD Software
  • Option to program using a separate API
  • Green/Pass, Red/Fail simulated LEDs for each target
  • Programming and debugging support for Microchip PIC® MCU, dsPIC® DSCs, & flash devices
  • Programming support for Microchip PIC32 and 8-bit AVR® microcontrollers (HVSP interface is not supported)
$899
More Info
View Backorder Details. The estimated return to stock date is March 1, 2025.

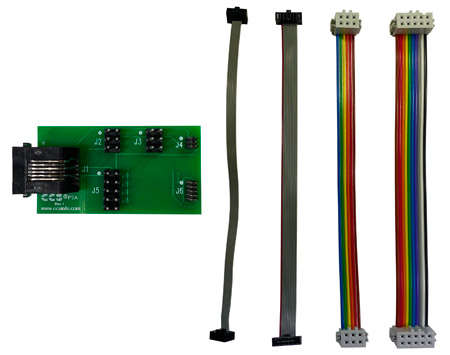

8-bit AVR® Programming Adapter

8-bit AVR® Programming Adapter

This adapter can be used to connect the AVR® board to the CCS programmer if the board has the standard 2x3 or 2x5 AVR® programming connectors on it. See Connecting to Atmel Hardware if the AVR® board has a different connector.

This adapter is for programming all 8-bit AVR® microcontrollers. *HVSP interface is not supported.

Note: This adapter only works with ICD-U80, LOAD-n-GO, and Prime8.

$25
More Info

Accelerate Your Product Development

CCS development tools can get your embedded project up and running quickly. Whether you are just loading up a board in the lab, programming a small production run or updating products in the field, CCS offers a range of debugging and programming hardware and software designed to meet your needs and fit your budget.

  • C-Aware Real Time Debugger is integrated into the compiler IDE and provides a robust and seamless debugging environment, debugging at the C source code level
  • In-Circuit Serial Programming (ICSP™) for all devices that support ICSP
  • Data Streaming support in ICD-U64, ICD-U80 and Mach X to obtain Real-time diagnostic data and more
  • CCSLOAD Programmer and Control Software included with each purchase of a Programmer/Debugger

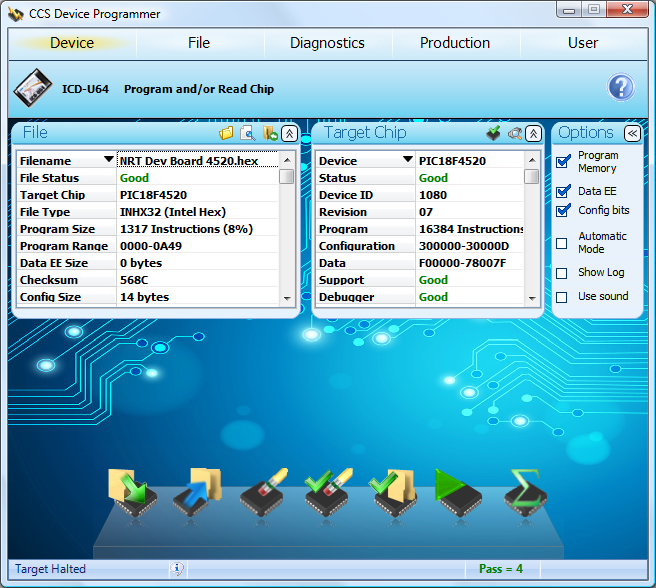

More Info CCSLOAD - CCS Programmer Control Software

CCSLOAD, our FREE Programmer Control Software, supports all CCS Programmers and Debuggers. CCSLOAD features a Windows user interface with extensive diagnostics, serialization, and security options. Windows support for XP, NT, Vista, 7, 8, 8.1, 10, and 11. The command line interface will run on Linux and Windows.
