3.3V Embedded Ethernet Development Kit

3.3V Embedded Ethernet Development Kit
Development Kit Options
Tools Includedw/Compiler
Hardware
Only*
Proto-
Board*
SkuS-9753321-75553213-753
Compiler SoftwarePCWH
ProgrammerXX
Prototyping boardXXX
Power supply & cablesXX
Exercise bookXX
Price$624$149$75
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

The 3.3V Embedded Ethernet Development Kit features Microchip's PIC® PIC18F67J60. This kit includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The kit features a prototyping board operating at 10-base T speeds and includes an exercise book with a TCP/IP tutorial and step-by-step instructions to implement embedded ethernet programs.

Example Programs included:

  • Complete Web Server
  • Email Generator
  • SD Card Read/Write

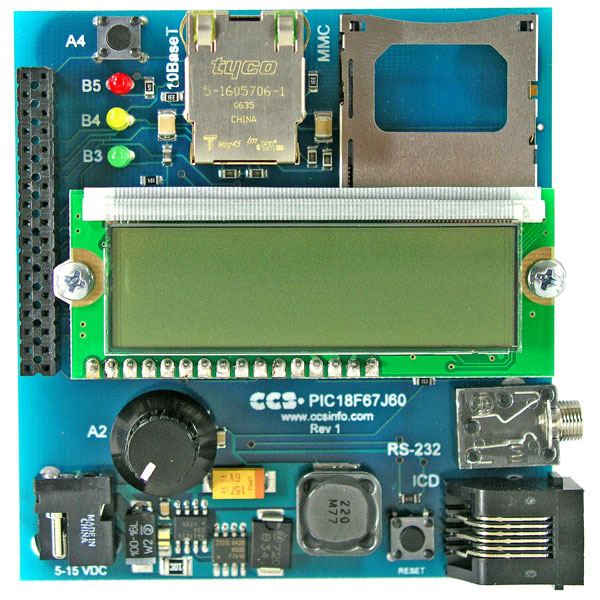

3.3V Embedded Ethernet Prototyping Board (Size: 3.25" x 3") includes:

Prototyping Board Image
  • PIC18F67J60 (RAM 3808 Bytes, Flash 128K)
  • 20 I/O Pins (2 Can Be Analog)
  • 40 Mhz Clock to run at 10 MIPs
  • Serial EEPROM (32 Kb)
  • Multi-media SD card reader
  • RS-232 port and RS-232 level converter
  • One potentiometer
  • One pushbutton
  • Three LEDs
  • ICD Jack
  • All logic 3.3V from an AC Adapter or 9V Battery
  • I/O Jumper Block with 20 Available Pins
  • 10-BaseT Ethernet Jack

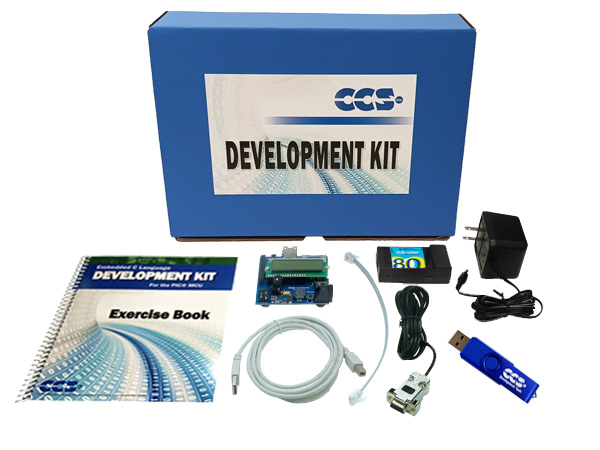

3.3V Embedded Ethernet Development Kit includes:

  • 3.3V Embedded Ethernet Prototyping Board
  • In-Circuit Debugger/Programmer
  • Exercise Tutorial
  • 9V AC Adapter and Cables

If you need to quickly and inexpensively ADD INTERNET CONDUCTIVITY to your product, visit

www.ezweblynx.com

Featuring a simple, small and very low cost Ethernet Integration Device.

The EZ Web Lynx unit is simply programmable in HTML or C code!

Click here to view the Prototyping Accessories.
