Embedded Ethernet Development Kit

Embedded Ethernet Development Kit
Development Kit Options
Tools Includedw/Compiler
Hardware
Only*
Proto-
Board*
SkuS-6653320-60353211-602
Compiler SoftwarePCWH
ProgrammerXX
Prototyping boardXXX
Power supply & cablesXX
Exercise bookXX
Price$654$179$75
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

The Embedded Ethernet Development Kit supports development with Microchip's ENC28J60 ethernet transceiver. This kit includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U80 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board features a PIC18F4620 attached to a potentiometer, RS-232 level converter, pushbutton and three LEDs.

Drivers and example TCP/IP code for the ENC28J60 are included.

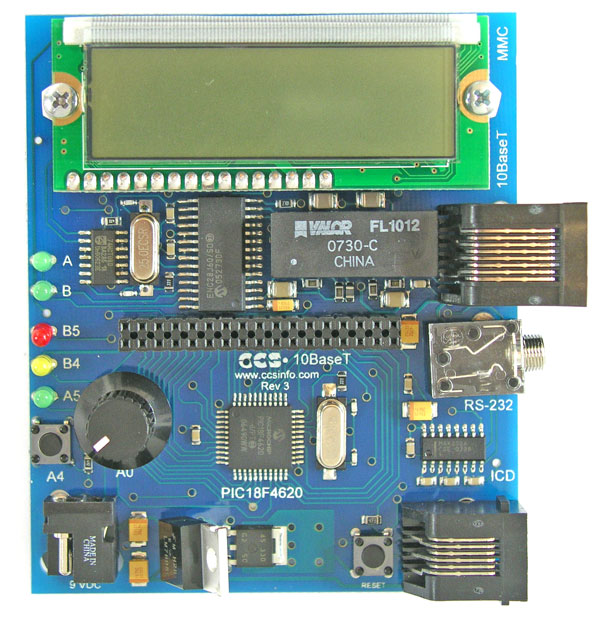

Embedded Ethernet Prototyping Board (Size: 3.625" x 3") includes:

Prototyping Board Image
  • ENC28J60
  • PIC18F4620
  • 30 I/O Pins (12 Can Be Analog)
  • One Potentiometer
  • One Pushbutton
  • Three User-controlled LEDs
  • RS-232 Level converter
  • Header for I/O to PIC18F4620
  • LCD
  • Serial EEPROM
  • MMC card reader

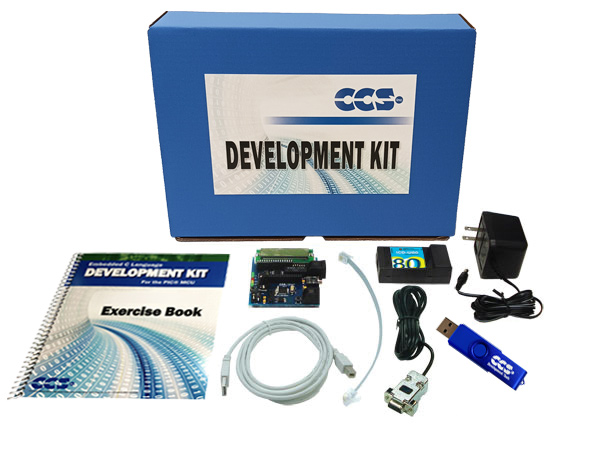

Embedded Ethernet Development Kit includes:

EZ Web Lynx

If you need to quickly and inexpensively ADD INTERNET CONDUCTIVITY to your product, visit

www.ezweblynx.com

Featuring a simple, small and very low cost Ethernet Integration Device.

The EZ Web Lynx unit is simply programmable in HTML or C code!


Click here to view the Prototyping Accessories.
