DSP Analog Development Kit

DSP Analog Development Kit
Development Kit Options
Tools IncludedPCWHD
Compiler
PCDIDE
Compiler
Hardware
Only*
Proto-
Board*
SkuS-127S-12453311-70453201-700
Compiler for PIC10-PIC18X
Compiler for PIC24-dsPIC33XX
ProgrammerXXX
Prototyping boardXXXX
Power supply & cablesXXX
Exercise bookXXX
Price$724$474$149$70
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

The DSP Analog Development Kit demonstrates the DSP features of the dsPIC33EP256MU806 on an audio conditioning board. Along with a prototyping board, it includes the powerful PCWHD Integrated Development Environment with compiler support for Microchip's 8-bit and 16-bit PIC® MCU families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The Texas Instruments TLV320AIC23B audio codec allows the user to sample microphone inputs and produce digital signal outputs. The TLV320AIC23B permits sample rates of 8, 32, 44.1, 48, and 96 KHz and the dsPIC® DSC running at 40 MIPS provides plenty of horsepower for user applications.

This board also includes a Texas Instruments TLV320AIC23B audio codec. This codec allows the user to sample microphone inputs and produce digital signal outputs. The TLV320AIC23B permits sample rates of 8, 32, 44.1, 48, and 96 KHz and the dsPIC® DSC running at 70 MIPS provides plenty of horsepower for user applications. The development kit provides for line in, line out, microphone in, and amplified audio out (for headphones).

Exercise tutorial includes examples for reading/writing to the codec using the DMA peripheral. FAT libraries are included in the CCS C Compiler.

The character LCD included on the prototyping board provides a user interface for quick development. Development Kit comes equipped with a prototyping board.

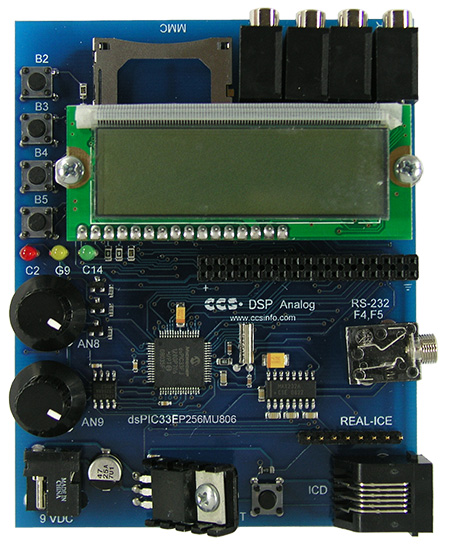

DSP Analog Prototyping Board (Size: 4" x 3.2") Includes:

Prototyping Board Image
  • dsPIC33EP256MU806
  • 21 I/O Pins (8 Can Be Analog)
  • Two Potentiometer
  • Four Pushbuttons
  • Three LEDs
  • LCD (2 x 16)
  • SD Card Reader
  • RS-232 Port
  • ICD connector
  • TI TLV320AIC23B Codec
  • Headphone Out
  • Microphone In
  • Line Out/Line In
  • Speaker Out

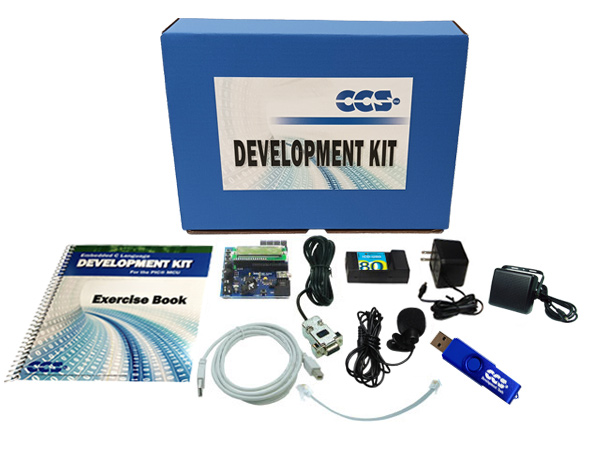

DSP Analog Development Kit Includes:

  • DSP Analog Prototyping Board
  • In-Circuit Debugger/Programmer
  • Exercise Tutorial
  • 9V AC Adapter
  • Modular Cable
  • USB Cable
  • Clip-On Microphone

Other Products

CLRspkr and CLRdsp products from West Mountain Radio are noise reduction products using the Microchip dsPIC33FJ128GP706. These products have the capability for a user to re-program this board via ICSP using a Tag-Connect and any CCS programmer.
