CAN Bus 24 Development Kit

CAN Bus 24 Development Kit
Development Kit Options
Tools IncludedPCWHD
Compiler
PCDIDE
Compiler
Hardware
Only*
Proto-
Board*
SkuS-135S-14353325-89253216-886
Compiler SoftwarePCWHDPCDIDE
ProgrammerXXX
Prototyping boardXXXX
Power supply & cablesXXX
Exercise bookXXX
Price$744$494$169$97
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

This kit enables users to begin CAN network development with Microchip's PIC® PIC24 and dsPIC® DSC families. The development kit includes the powerful PCWHD Integrated Development Environment with compiler support for Microchip's 8-bit and 16-bit PIC® MCU families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board has four nodes nodes and includes a PIC24HJ56GP610 with two on-chip ECAN controllers, a dsPIC30F4012 connected to an MCP2515 CAN peripheral, and two MCP25050 CAN expanders. CAN drivers and example code are also included.

Node A: A PIC24HJ56GP610 which includes an integrated CAN peripheral. Note: Only the can-PIC24 driver can be used with node A.

Node B: A dsPIC30F4012 connected to an MCP2515 (external CAN peripheral SPI interface).

Node C & D: MCP25050s (stand-alone CAN expanders) pre-programmed by CCS to respond to specific CAN IDs.

Nodes A-C have potentiometer, three LEDs and three pushbuttons connections. Node D is connected to a 7-segmented LED.

An extra CAN transceiver has also been left open to connect the CAN Bus Prototype board with other CAN systems.

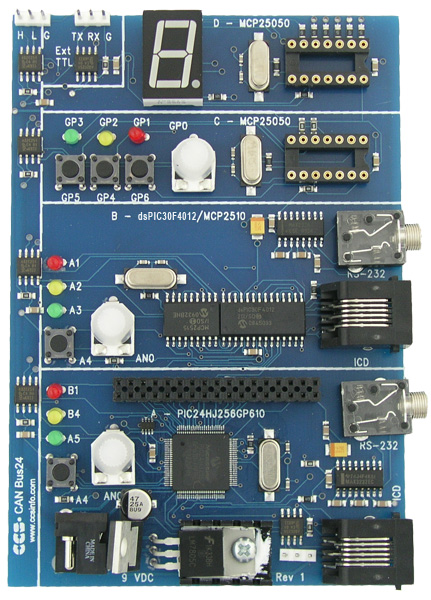

CAN Bus 24 Prototyping Board (Size: 3.27" x 4.80") includes:

Prototyping Board Image
  • PIC24HJ56GP610
  • dsPIC30F4012
  • 30 I/O (8 Can Be Analog)
  • MCP2515
  • Two MCP25050
  • Three Potentiometers
  • Nine LEDs
  • 7-Segment LED
  • Two RS-232 Ports
  • RS-232 Level Converter
  • Two ICD Jacks

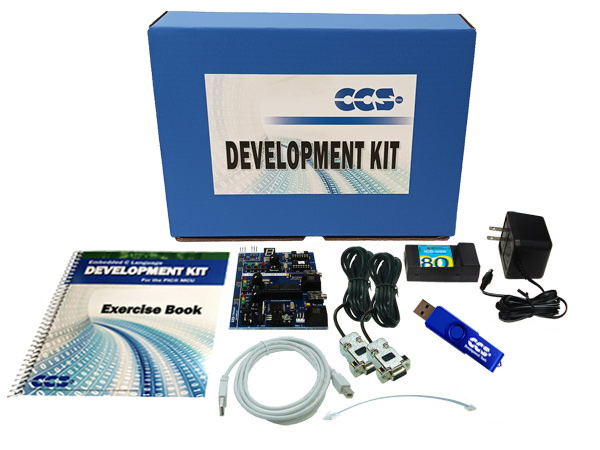

CAN Bus 24 Development Kit includes:

  • CAN Bus Prototyping Board
  • In-Circuit Debugger/Programmer
  • Exercise Tutorial
  • 9V AC Adapter and Cables

Click here to view the Prototyping Accessories.
