PIC18F6722 Development Kit

PIC18F6722 Development Kit
Development Kit Options
Tools Includedw/Compiler
Hardware
Only*
Proto-
Board*
SkuS-953306-46753106-410
Compiler SoftwarePCWH
ProgrammerXX
Prototyping boardXXX
Power supply & cablesXX
Prototyping Parts BoxXX
Exercise bookXX
Price$624$149$55
Product Out of Stock
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

The development kit contains everything you need to begin development with Microchip's PIC® PIC18F6722 MCU. Along with a prototyping board, it includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board features a PIC18F6722 connected to a potentiometer, a pushbutton, three LEDs, an RS-232 level converter connected to the C6/C7 UART and the G1/G2 UART, and an ICD connector.

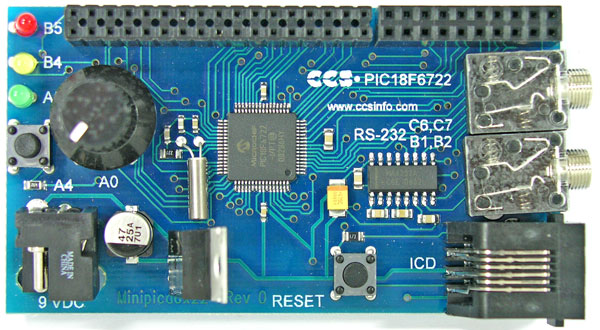

PIC18F6722 Prototyping Board (Size: 3.125" x 1.75") includes:

Prototyping Board Image
  • PIC18F6722
  • 48 I/O Pins (11 Can Be Analog)
  • One Potentiometer
  • One Push-button
  • Three LEDs
  • RS-232 Level Converter connected to the C6/C7 UART and G1/G2 UART
  • ICD Jack

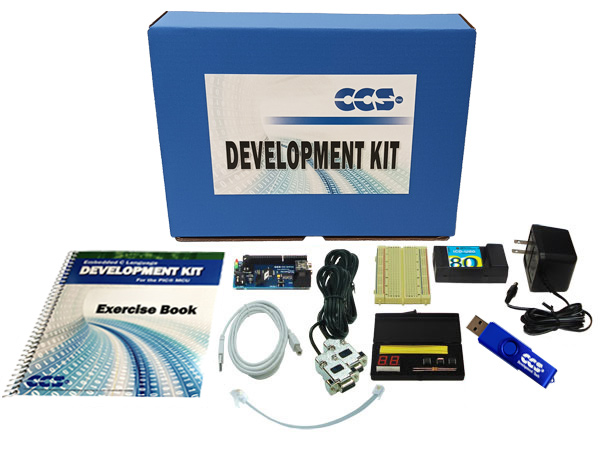

PIC18F6722 Development Kit includes:

  • PIC18F6722 Prototyping Board
  • In-Circuit Debugger/Programmer
  • Breadboard
  • Parts box with:
    • 93LC56 serial EEPROM chip
    • Jumpers
    • DS1631 digital thermometer chip
    • NJU6355 real time clock IC with attached 32.768kHz crystal
    • Two digit seven segment LED module
    • Two 1K Ohm resistors
  • Exercise Tutorial
  • 9V AC Adapters and Cables

Click here to view the Prototyping Accessories.
