PIC18F4520 Development Kit

PIC18F4520 Development Kit
Development Kit Options
Tools Includedw/Compiler
Hardware
Only*
Proto-
Board*
SkuS-753302-46653105-397
Compiler SoftwarePCWH
ProgrammerXX
Prototyping boardXXX
Power supply & cablesXX
Prototyping Parts BoxXX
Exercise bookXX
Price$600$125$40
Product Out of Stock
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

This kit contains everything you need to begin development with Microchip's PIC® PIC18 family. Along with a prototyping board, it includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board features a PIC18F4520 MCU attached to a potentiometer, RS-232 level converter, pushbutton, three LEDs, and an ICD connector.

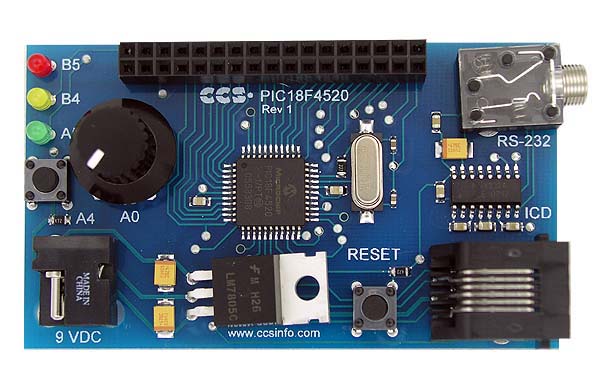

PIC18F4520 Prototyping Board (Size: 3" x 1.75") includes:

Prototyping Board Image
  • PIC18F4520
  • 30 I/O Pins (11 Can Be Analog)
  • One Potentiometer
  • One Pushbutton
  • Three LEDs
  • RS-232 Level Converter
  • ICD Jack

PIC18F4520 Development Kit includes:

  • PIC18F4520 Prototyping Board
  • In-Circuit Debugger/Programmer
  • Breadboard
  • Parts box with:
    • 93LC56 serial EEPROM chip
    • Jumpers
    • DS1631 digital thermometer chip
    • NJU6355 real-time clock IC with attached 32.768kHz crystal
    • Two digit 7-segment LED module
    • Two 1K Ohm resistors
  • Exercise Tutorial
  • 9V AC Adapter and Cables

Click here to view the Prototyping Accessories.
