Enhanced 8-bit Mid-Range Core

Enhanced Midrange Core

  • Support Now available in PCM Compilers
  • Reduce Production costs by at least 15% per chip
  • Gain 16 levels hardware stack
  • Increased Instruction Count
  • More Program Memory
  • Increased Peripheral Support
Gain Access to NEW Compiler Features
Current Customers New Customers

Customers on Active Maintenance are eligible for support at NO ADDITIONAL COST! Please visit the compiler downloads page.

Need to purchase maintenance or upgrade your compiler support?

Click Here

Customers new to CCS can obtain support by purchasing a PCM, PCW, PCWH or PCWHD Compiler.

See all Compiler options available?

Interested in purchasing a compiler?

Click Here
Complete Architecture Support
New PIC®MCU Architecture Features New CCS Compiler Support

Up to 56K of Flash Program Memory and 4k Data Memory

Enhanced 16-level hardware stack with optional RESET

Increased peripheral support including:

  • Multiple A/D converters & comparators
  • Multiple SPI/I2C, USART
  • Multiple capture/compare/PWM
  • *mTouch™ & Non-Volatile Memory
  • Operational amplifiers & LCD drive capability

Enhanced Indirect linear addressing

C programming language optimizations

Automatic interrupt context save of core registers

Simplified register map

Additional Features Include:

  • Up to 32MHz internal oscillator
  • Low power 1.8V operation up to 5.5V

Support for parts with up to 56K instructions and 4K of RAM

Reduction of inlined system functions with the 16-level call stack

New Built-in Functions for ALL enhanced peripherals:

Uses MOVLP for page switches and MOVLB for bank switches

  • Inline assembler supports all new instructions and addressing modes
  • Full implementation of ANSI setjmp.h functions utilizing the new stack access
  • Uses SFRs to reduce the number of instructions needed for complex expression

Reduced interrupt overhead

Compatibility switch to translate old or hard-coded addresses, to new SFR registers

Customers on Active Maintenance Download Support Today

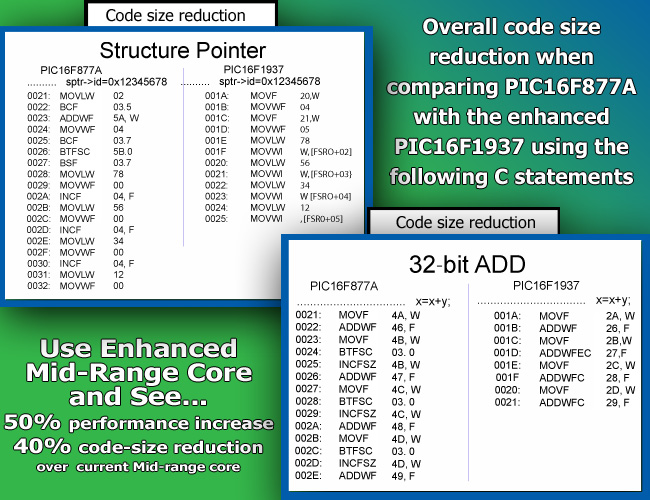

Compiler Exploitation of the New Instructions


New from Microchip

Enhanced Mid-Range Core Architecture Support Info
