How does the PIC® MCU connect to a PC?

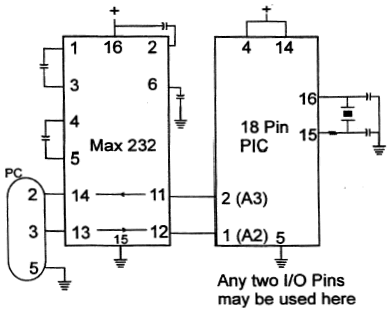

A level converter should be used to convert the TTL (0-5V_ levels that the PIC operates with to the RS-232 voltages (+/- 3-12V) used by the PIC. The following is a popular configuration using the MAX232 chip as a level converter.

Connecting a PIC to a PC
