CCS Wireless - Ember ZigBee<sup>™</sup> Edition
Development Kit Options
Tools Includedw/Compiler
Hardware
Only*
Proto-
Board*
SkuS-8553323-70253212-685
Compiler SoftwarePCWH
ProgrammerXX
Prototyping boardXXX
Power supply & cablesXX
Exercise bookXX
Price$724$249$199
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

ZigBee For Both PIC16 and PIC18 Targets

The CCS Wireless - Ember ZigBee™ Edition Development Kit enables fast prototyping of ZigBee™ applications. This kit includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. A base station board is provided along with two battery operated sensor boards, each with the EM260 module board installed. The kit features full communication protocols with the Ember-ZigBee™ stack using the powerful Ember EM260 chip.

CCS Wireless-Ember ZigBee Edition Prototyping Boards include:

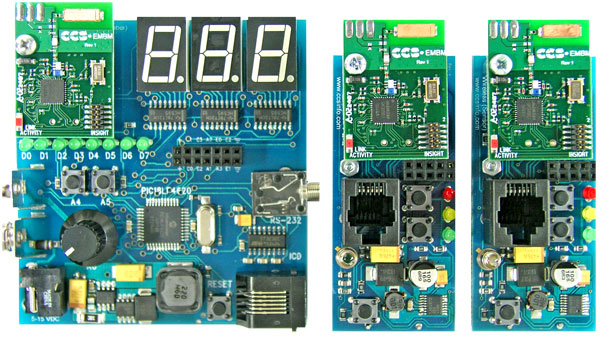

Prototyping Board Image
  • One base station board with PIC18LF4620 processor chip and EM260 module
    (Size: 3.25" x 3")
  • 10 I/O Pins (3 Can Be Analog) on Base Station
  • Two sensor boards with PIC16F886 processor chips and EM260 modules
    (Size: 2.75" x 1.25")
  • 5 I/O Pins (1 Can Be Analog) on Sensor Boards
  • Two 9V batteries

Features of the Ember EM260 module include:

  • 2.4 Ghz IEEE 802.15.4 compliant transceiver
  • 3.3V operation
  • Insight Port for advanced network debugging with Insight Desktop
  • Size: 1.375" x 1"
  • SPI Interface

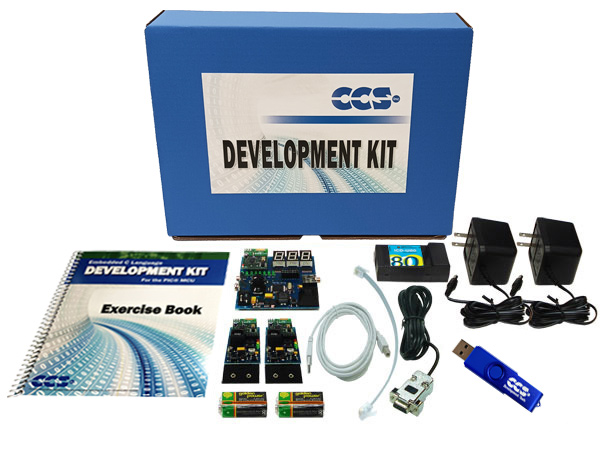

CCS Wireless - Ember ZigBee Edition Development Kit includes:

  • Two Sensor Boards with PIC16F886 processor chips and EM260 modules
  • One Base Station Board with PIC18LF4620 processor chip and EM260 module
  • In-Circuit Debugger/Programmer
  • Serial PC to Prototyping Board Cable
  • Modular Cable (ICD to Prototyping Board)
  • USB (or serial) PC to ICD Cable
  • Exercise Tutorial and Ember Documentation
  • 9V AC Adapters
  • Two 9V Batteries

Click here to view the Prototyping Accessories.
