Rapid 18 Development Kit

Rapid 18 Development Kit
Development Kit Options
Tools Includedw/Compiler
Compiler SoftwarePCWH
Prototyping boardXXX
Power supply & cablesXX
Exercise bookXX
Buy Now
*Hardware only and proto-boards are intended for customers already owning a CCS compiler.

This easy-to-use PIC18 development kit has a built-in bootloader for loading code and a USB port for text communication to the running program. Microchip's PIC® PIC18F4523 provides advanced peripherals including a 12-bit ADC. The development kit includes the powerful PCWH Integrated Development Environment with compiler support for Microchip's PIC® PIC10, PIC12, PIC16 and PIC18 families and an ICD-U64 in-circuit programmer/debugger that supports C-aware real time debugging. The prototyping board features a PIC18F4523 attached to a potentiometer, two pushbuttons, three LEDs, and an ICD connector.

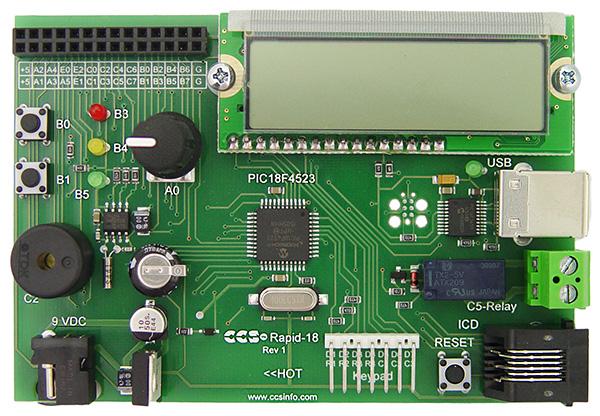

Rapid 18 Prototyping Board (Size: 4.25" x 2.88") includes:

Prototyping Board Image
  • PIC18F4523 Microchip PIC® MCU
  • 24 I/O Pins (11 can be 12-bit analog)
  • One Potentiometer
  • Two Pushbuttons
  • Three LEDs
  • USB Connector (with USB to PIC® UART interface)
  • ICD Jack
  • Keypad Socket (for 3x4 keypad)
  • 16x2 Character LCD
  • Piezo Speaker/Buzzer
  • Relay and Dry Contacts
  • Real Time Clock/Calendar with Supercap

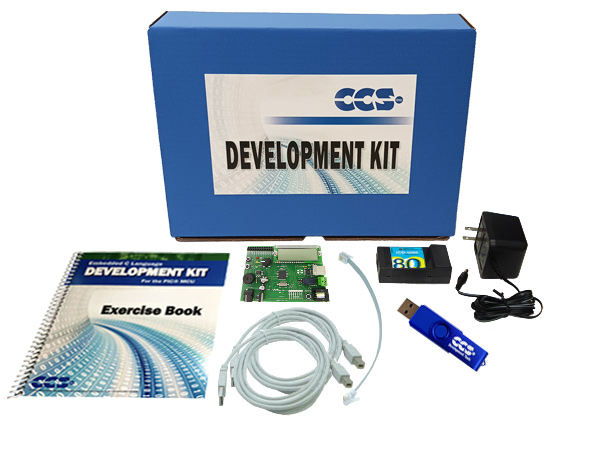

Rapid 18 Development Kit includes:

  • Rapid 18 Prototyping Board
  • ICD-U64 In-Circuit Debugger/Programmer
  • Exercise Book
  • 9V AC Adapter and Cables
  • Extra Parts: Thermistor and 1K Resistor
