PIC16F887 Student Development Kit

Sku: S-177

PIC16F887 Student Development Kit
In stock (ships immediately)

Note: This product is for educational purposes only. A valid student ID is required to purchase this product.

This development kit contains everything you need to begin development with Microchip's PIC® PIC16 family. Along with a prototyping board, it includes a single chip compiler and an ICD-U40 in-circuit programmer/debugger. The prototyping board features a PIC16F887 attached to a potentiometer, RS-232 level converter, pushbutton, three LEDs, and an ICD connector.

PIC16F887 Prototyping Board (Size: 3" x 1.75") includes:

  • PIC16F887
  • 30 I/O Pins (12 Can Be Analog)
  • One Potentiometer
  • One Pushbutton
  • Three LEDs
  • RS-232 Level Converter
  • ICD Jack

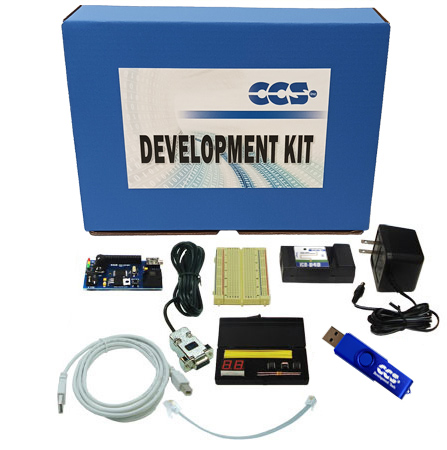

PIC16F887 Development Kit includes:

  • PIC16F887 Prototyping Board
  • In-Circuit Debugger/Programmer
  • Breadboard
  • Parts box with:
    • 93LC56 serial EEPROM chip
    • Jumpers
    • DS1631 digital thermometer chip
    • NJU6355 real-time clock IC with attached 32.768kHz crystal
    • Two digit 7-segment LED module
    • Two 1K Ohm resistors
  • Exercise Tutorial
  • 9V AC Adapter and Cables
