Frequently Asked Questions
How can I find my ICD-S/U revision number?
The product ID on an ICD-S/U can help you determine the chips and voltages supported by that particular revision.
ICD-S/U Revision Support | ||||||
---|---|---|---|---|---|---|
Product ID # | Any Chip VDD = 5.0V |
3.0V - 5.0V Chips VDD = 2.5V - 4.5V |
3.0V Only Chips Any VDD |
Newest Chips (more info) |
EP Chip Debug |
|
![]() |
195 | Yes | Yes | Yes | Yes | Yes |
193, 194 | Yes | Yes | Yes | Yes | No | |
![]() |
101 - 108 | Yes | Yes | Yes | No | No | 100 | Yes | Yes* | No | No | No | 96 - 99 | Yes | Yes* | No | No | No | < 96 | Yes | No | No | No | No |
* Operation at lower voltages and/or with some loads on pins B6, B7 may be unreliable.
Using CCSLoad to Find the Product ID

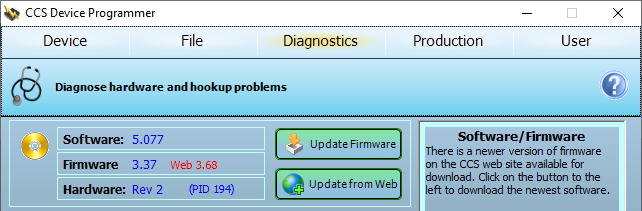

- Connect the ICD-S/U to the PC and open CCSLoad.
- On the Device tab, click on the Programmer Info tab in the table.
- The product ID and firmware will be listed in the table.
Using ICD to Find the Product ID
- Connect the ICD-S/U to the PC and open ICD.
- In the status bar at the bottom of the ICD window, check the center field.
- The product ID and firmware will be listed in the format: M.NN Rev #PID
Hardware Upgrades:
- CCS can upgrade revision 96 - 108 to a 195 for $50 and 193 & 194 to 195 for $25, not including shipping. To upgrade, click here.
- M is the major firmware revision. M must be 2 or higher to support 24-bit parts. Units with version 1 cannot upgrade to version 2 firmware automatically; the unit must be sent back to CCS to be updated.
For more information or additional help about ICD-S/U hardware revisions, contact CCS Technical Support.
