In stock (ships immediately)
Mfg P/N: TC2030-MCP-10
Description: 6-pin cable with RJ12 modular plug, 10 in.
Save production costs with Tag-Connect

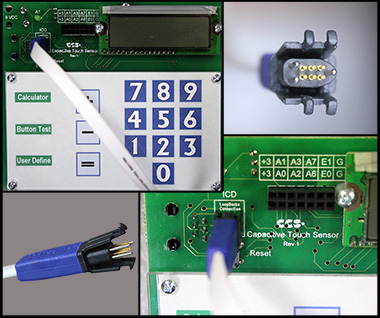

Eliminate the ICSP™ connector on your product. Tag Connect is a new type of production ICSP™ Programming cable.
- Direct pin-to-circuit connection

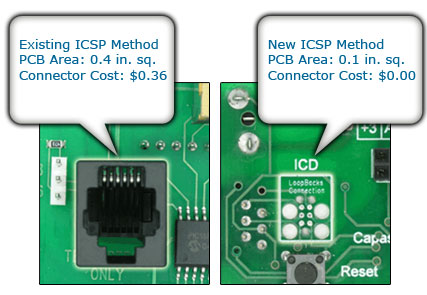

- Less square area on PCB
- ICSP™ Program AND debug capabilities

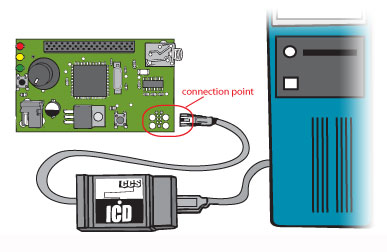

- Modular end to work with existing ICD programmers on the market
2 Easy Steps for saving money
- Put the connector footprint on your PCB
- Buy the ICSP™ Programming Cable which works with all CCS Programmer/Debuggers.
- Importable Decal Libraries for PADS, OrCad, Eagle & Protel/Altium
- Note: It is the users responsibility to check both the decals and the tolerances used by the PCB fab will meet the spec given in the drawings. In particular finished alignment pin hole size must be a minimum of 0.035" and no solder paste should be deposited on the spring-pin pads.
- Tag Connect Footprint
